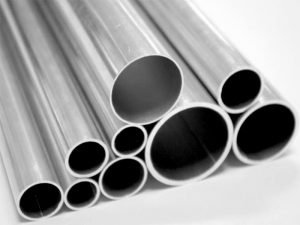

Composite Aluminium Tube (Al-Al Composite Tube)
2021-12-16

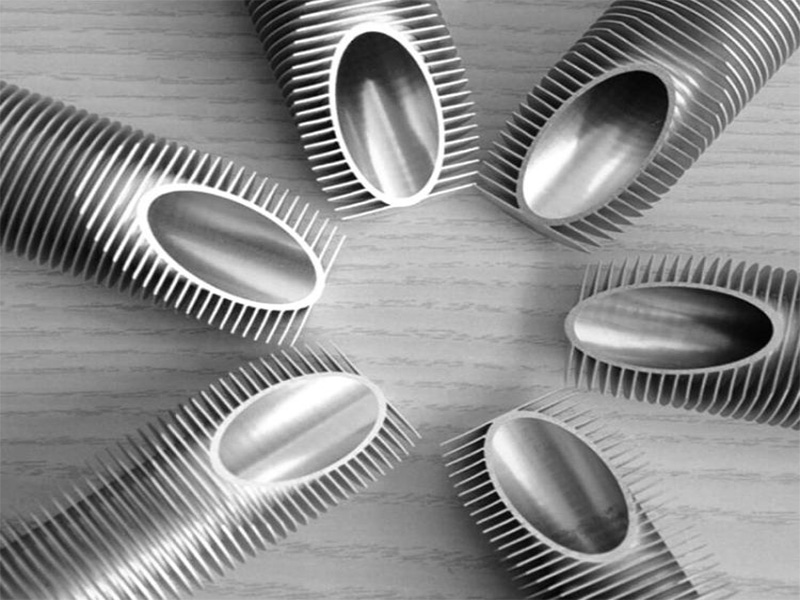

Aluminum Finned Tube

  1. Aluminum finned tube refers to a kind of heat exchange device. To improve the heat exchange efficiency, fins are usually added to the surface of the core tube to increase the outer surface area (or inner surface area).
  2. The aluminum finned tube is a new, wear-resistant and efficient heat exchange material. It is a high-efficiency and energy-saving heat exchange element, which has the characteristics of high heat exchange efficiency, large heat dissipation area, long service life, wide temperature range and high-pressure adaption.
  3. CHAL provides a full range of finned tubes for heat exchangers with reliable quality, high performance, complete designs and competitive price.

Share To:

Aluminum Finned Tube
Aluminum Finned Tube
Aluminum Finned Tube
Aluminum Finned Tube

Product Details of Aluminum Finned Tube

Fin Material

Aluminium 1050/1060/1070/1100/5052/6063

Fin Type

Solid or serrated or as per your drawing

Fin Pitch

Min. 1.5mm

Fins Per Pitch(Density)

4-12

Fin Segments

12, 16, 24 fins or as per your design

Fin Height

Max. 16.5mm

Fin Thickness

0.4mm Average

Core Tube Material

Aluminum alloy (Core tube with extremely thin wall materials can be applied.)

Base Tube OD

Max 2”(50.8mm)

Tube Wall Thickness

No Limit

Tube length

No limit

Accessories

Tube Support Box, Clamp & Spacer Box

Packaging Details

(1) Steel frame case sealed by plywoods with each end-capped.

(2) Solid fumigated wooden box with each end-capped.

Product Show of Aluminum Finned Tube
Seamless-Aluminium-Tube

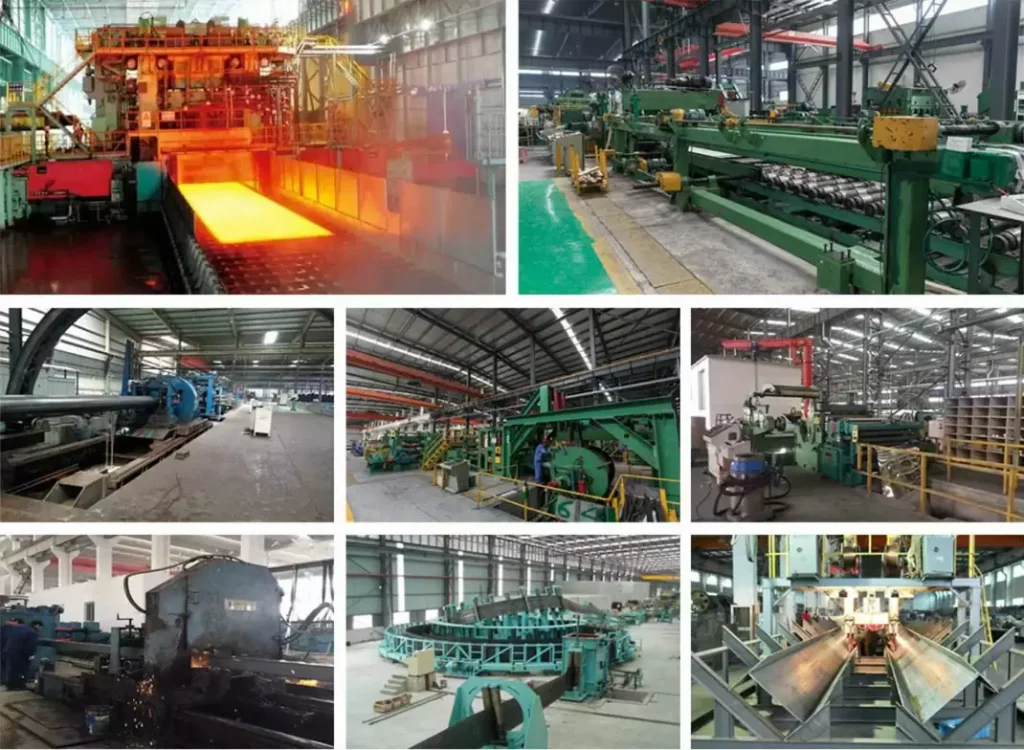

Factory Show of Aluminum Finned Tube
Packing Shipping of Aluminum Finned Tube
Seamless-Aluminium-Tube
